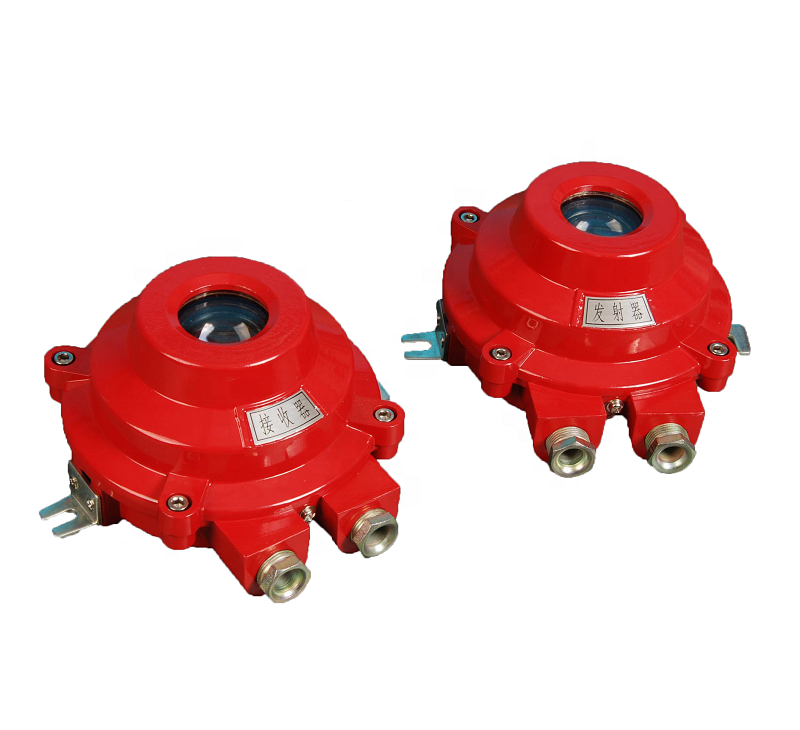

BD103EX Explosion Proof Beam Smoke Detector

Type
Explosion Proof
Operating Voltage
24VDC
Standby Current
≤10mA
Alarm Current
≤25mA
Explosion Proof Mark
Exd (ib) II CT6
Detection Distance
3-100m
Detector Protective Diameter
14m
The Ambient Temperature
-10 ° C ~ +55 ° C
Relative Humidity
≤95% (non-condensing)


INQUIRY
Description

AS-BD103EX explosion-proof infrared beam smoke detector comprise a transmitter and a receiver. It is mounted facing each other at the opposite ends of the wall, create a protected area. It gives alarm signal after a certain concentration of smoke is detected. This product is particular suitable for large space area,high-ceiling buildings such as warehouses, factories, airports, hotel lobby, shopping malls, etc.
