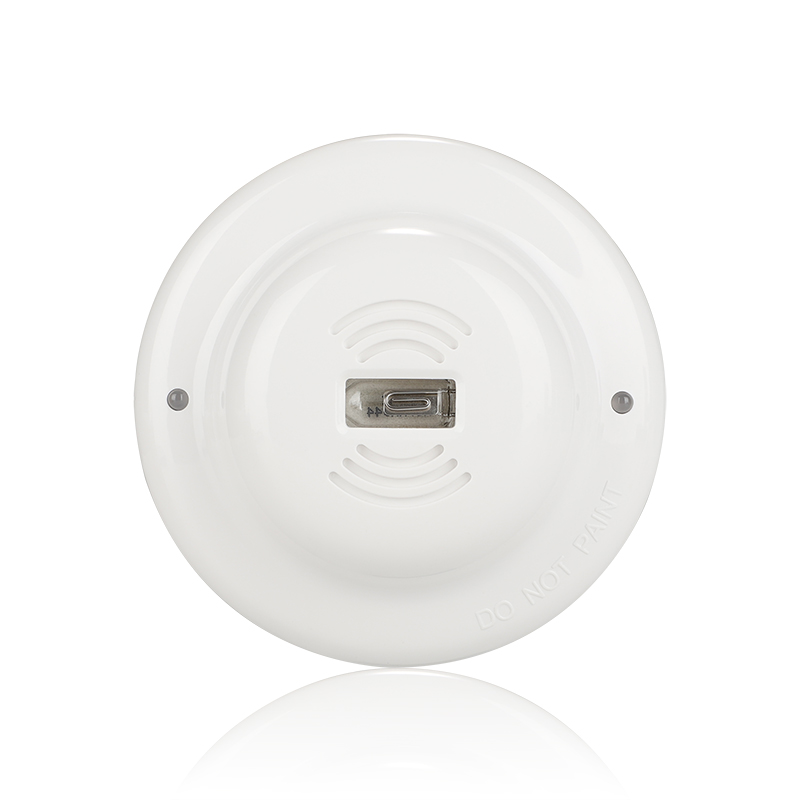

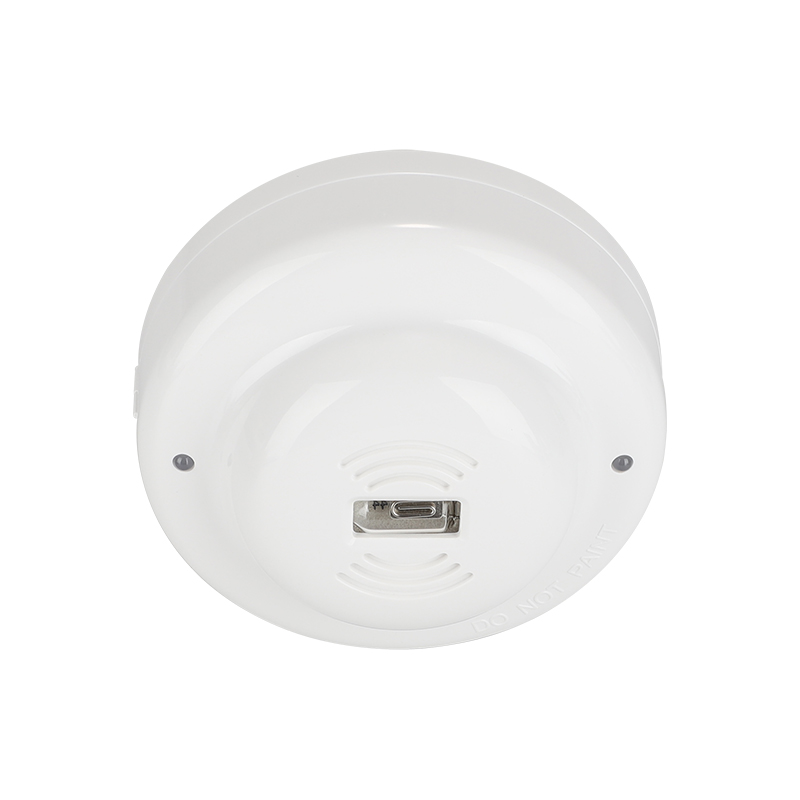

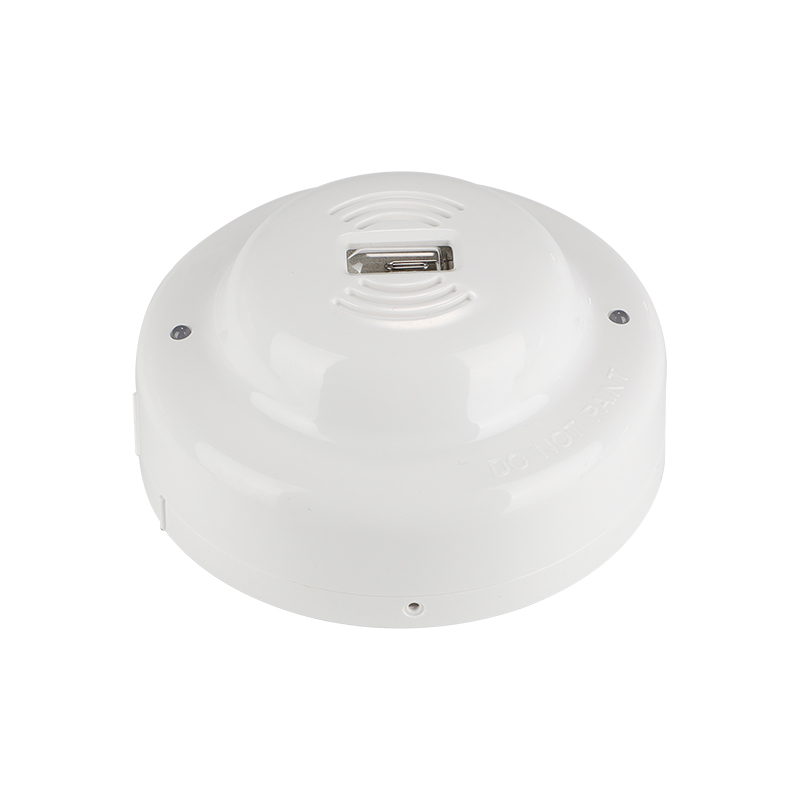

UFD Conventional UV Flame Detector

Product Features:

OperatingVoltageRange:12 to 30 VDC Volts

Standby Current:≤10 mA @ 24 VDC

Alarm Current:≤30 mA @ 24 VDC

Spectrum:180~290nm

Detection Angle:110 degree

Detection Sensitivity:Grade I, 25m@flame

Relay Contact Load:1A@DC24V

Normal Status:LED blinking in 5 seconds interval

Alarm Status:LED lit steady

OperatingHumidityRange:10% to 93% Relative Humidity, Non-condensing

OperatingTemperatureRange:-10°Cto50°C(14°Fto122°F)

Height:1.8˝ (45 mm) installed in Base

Diameter:4.0˝ (103 mm)

Weight:5.4 oz. (153g)

INQUIRY
Description

The device is an Ultraviolet-only flame detector designed to detect fires and provide alarm outputs directly from the detector while maintaining false alarm immunity. It detects in the ultraviolet (UV) spectral range for optimized speed of response.

It is fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high hazard applications such as petrochemical plants, munitions factories and other areas where flammable or explosive liquids or solids are handled or stored.

The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable, dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil, tolerance of fume, and humidity. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by2Kgethanol in a Container of Base 33cmX33cm, Height5cm.
